Tornado N (NEXT) PC control 5-300rpm PSTC-103 1 unit

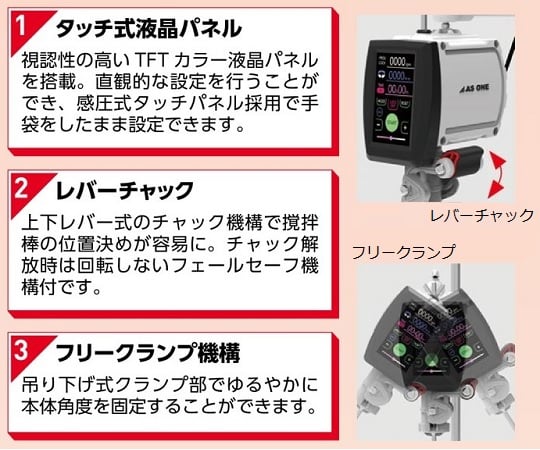

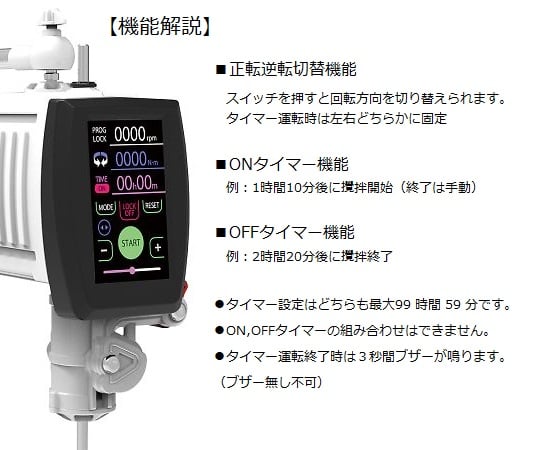

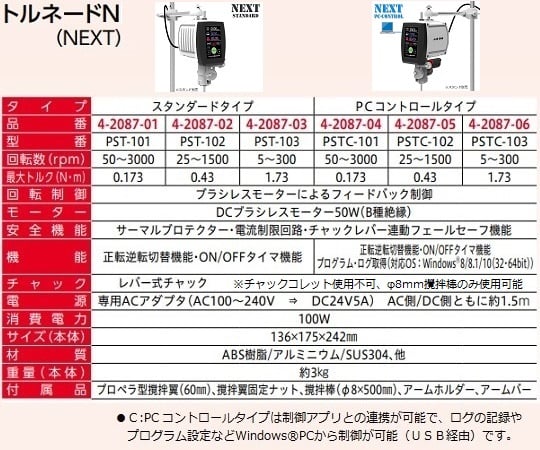

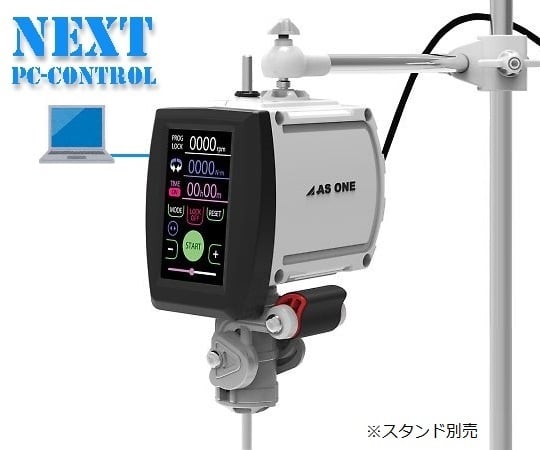

Equipped with a newly designed dedicated DC brushless motor, it achieves high output in a compact size, low cogging, low vibration and low noise. Excellent rotational accuracy, little eccentricity and high torque. Choose from three RPM ranges. Belt drive makes it suitable for long-term operation. When the motor heats up during overload or long periods of operation, the thermal protector activates to protect the product. The feedback system constantly responds to changes in load during mixing and maintains the set rotation speed. The stirring rod can be loosened by lowering the lever chuck, allowing the stirring rod height to be changed smoothly (no separate parts required). The pressure-sensitive touch panel is equipped with a wide range of functions. The bar-type rotation speed setting allows for analog-like operation. Displays forward/reverse rotation/rpm/torque/timer/mode. It can be linked with a control app, and log recording, program settings, etc. can be controlled from a Windows® PC (via USB). Next-generation model of high torque agitator PC control type is also available. Control type Rotational speed (rpm): 5 to 300 Maximum torque (N・m): 1.73 Control software: Yes Rotation control: Feedback control using brushless motor Motor: DC brushless motor 50W (Class B insulation) Safety features: Thermal protector, current limiting circuit, and chuck lever interlocking fail-safe function Functions: forward/reverse switching function, ON/OFF timer function, program log acquisition (Supported OS: Windows®8/8.1/10/11 (32/64bit)) Chuck: Lever type chuck Power supply: Dedicated AC adapter (AC100-240V⇒DC24V5A) AC⇔Adapter⇔DC are both approximately 1.5m long Power consumption: 100W Size (main unit): 136 x 175 x 242 mm Material: ABS resin/aluminum/SUS304, etc. Weight (main unit): Approx. 3kg Accessories: Propeller-type stirring blade (60 mm), stirring blade fixing nut, stirring rod (φ8 x 500 mm), arm holder, arm bar *Stand is not included. *Only Φ8mm shaft diameter is available. Collets for chucks of the Tornado series (AS ONE product numbers: 1-5507-02, 1-5507-03) cannot be used with the Tornado N series. Click here to download the dedicated software PSTC-Controller (v102) Supported OS: Windows®8/8.1/10/11 (32/64bit)
