TOEI DV joint cleaning port VCO knob type 75 VCO75 1 piece

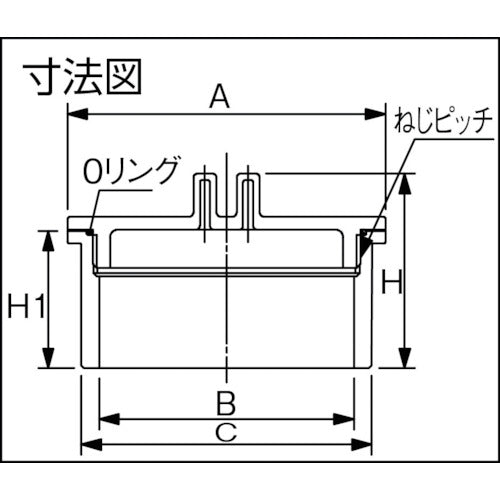

Catalog number: VCO75 Features: ●Easy to cut and scrape with ordinary tools. ●Pipes can be easily joined with a special adhesive, so there is no risk of water leakage. ●Lightweight, making it extremely easy to handle for plumbing and transportation. Applications: ●Sewage joints. Specifications: ●PVC pipe nominal diameter: 75 ●Dimensions (mm) A: 100 ●Dimensions (mm) B: 78.5 ●Dimensions (mm) C: 89 ●Dimensions (mm) H: 65.5 ●Dimensions (mm) H1: 44 ●Packing shape: O-ring ●Operating temperature range: 0 to 45°C ●JIS K6739 standard product ●Maximum operating pressure: No pressure Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●DV joints should not be used for pressure applications. ●Avoid storing various products in places under the blazing sun or in places with extreme heat. Store indoors, or if necessary store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
