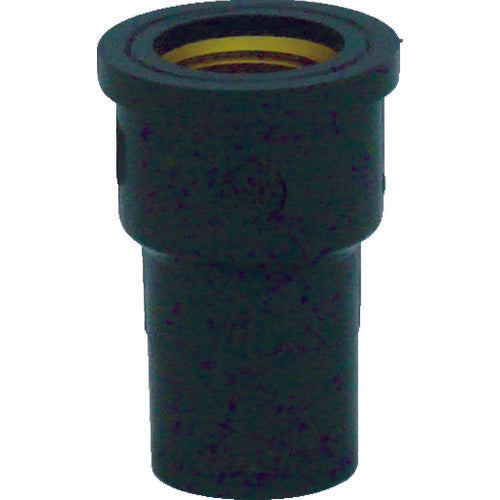

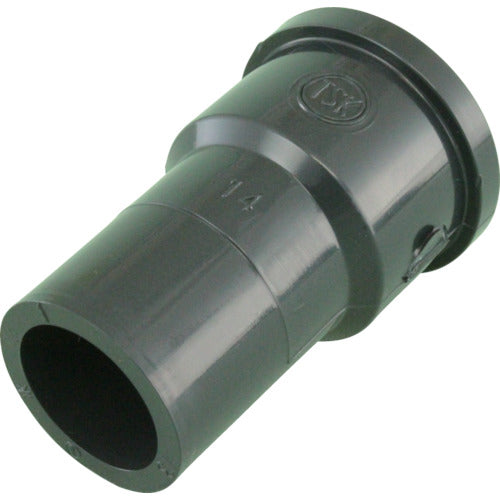

TOEI HI Fitting Insert Faucet Socket 13 HIMWS13 1 pc

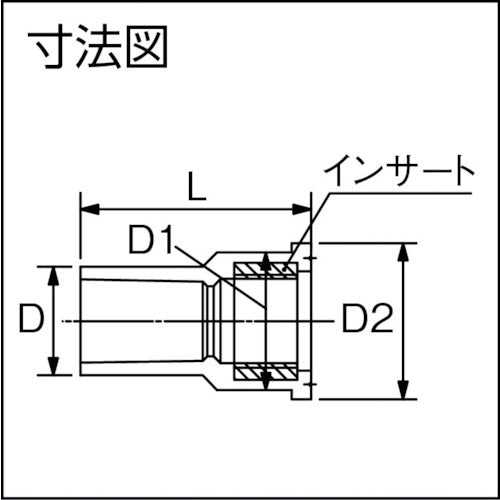

Catalog number: HIMWS13 Features: ●Easy to cut and scrape with ordinary tools. ●Pipes can be easily joined with a special adhesive, so there is no risk of water leakage. Applications: ●Fittings exclusively for HI pipes (rigid PVC pipes). Specifications: ●Nominal diameter of PVC pipe: 13 ●Dimensions (mm) D: 24 ●Dimensions (mm) L: 47 ●Maximum operating pressure (MPa): 0.98 ●Operating temperature range (℃): 0 to 40 ●Dimensions (mm) D1: 30 ●Dimensions (mm) D2: 34 ●Thread: Rp1/2 ●Operating temperature range: 0 to 40℃ ●Maximum operating pressure: 0.98MPa ●JIS K6743 standard Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC) Caution: ●When connecting to a water faucet or threaded steel pipe, etc., follow the construction method and standard tightening torque described in the technical documentation and catalog, and do not tighten excessively.
