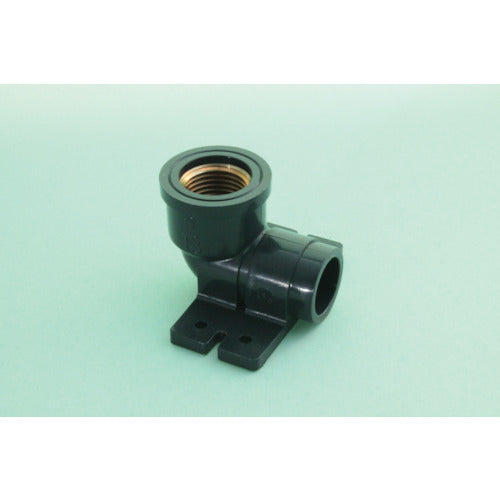

TOEI HI joint, insert faucet elbow with seat, 16 x 13, HIMWL-ZN16-13, 1 piece

Catalog number: HIMWL-ZN16-13 Features: ●Since it has a seat, no pipe band is required. ●The pipes can be easily connected with a special adhesive, so there is no need to worry about water leakage. Applications: ●Fittings exclusively for HI pipes (rigid PVC pipes). Specifications: ●Nominal diameter of PVC pipe: 16 x 13 ●Dimensions (mm) D: 29 ●Dimensions (mm) H: 43 ●Dimensions (mm) L: 70 ●Operating temperature range: 0 to 40°C ●Maximum operating pressure: 0.98MPa Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC) Caution: ●When connecting to a water faucet or threaded steel pipe, etc., follow the construction method and standard tightening torque described in the technical documentation and catalog, and do not tighten excessively.
