Toshin Threaded Double Wheel Caster, 60 Diameter, Swivel Bolt, M8 x 1.25, T60-BM8XP1.25, 1 Piece
Toshin Threaded Double Wheel Caster, 60 Diameter, Swivel Bolt, M8 x 1.25, T60-BM8XP1.25, 1 Piece
Regular price
¥552
Regular price
Sale price
¥552
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

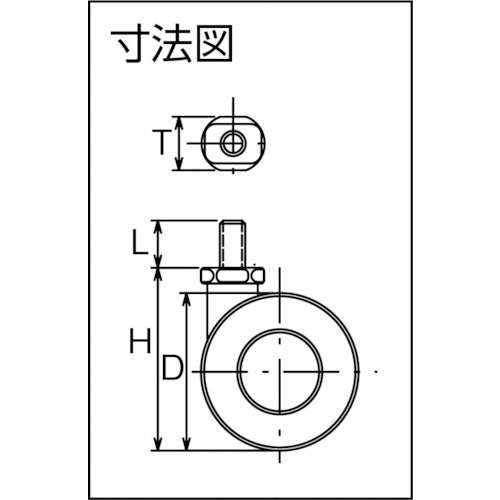

Catalogue number: T60-BM8XP1.25 Features: ● A general-purpose caster for a wide range of uses. Applications: ● Office equipment, furniture, store fixtures, medical equipment, camera equipment, musical instruments, etc. Specifications: ● Wheel diameter D (mm): 60 ● Type: Swivel ● Allowable load (daN): 80 ● Allowable load (kgf): 81 ● Wheel width (mm): 46 ● Mounting height H (mm): 69 ● Shaft length L (mm): 15 ● Thread T: M8 ● Thread pitch (mm): 1.25 ● Screw-in type ● Swivel ● General-purpose design caster Material/Finish: ● Metal fittings: Cold heading carbon steel (SWCH) ● Metal fittings surface treatment: Trivalent chromium plating finish ● Body and wheels: Nylon
