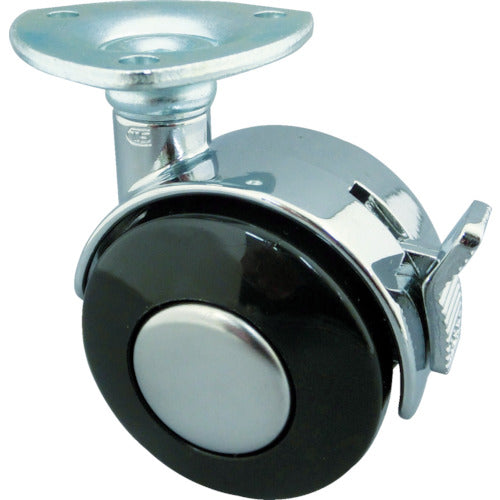

Toshin Plate-type double-wheel caster, diameter 40, with free stopper, US40-P, 1 piece

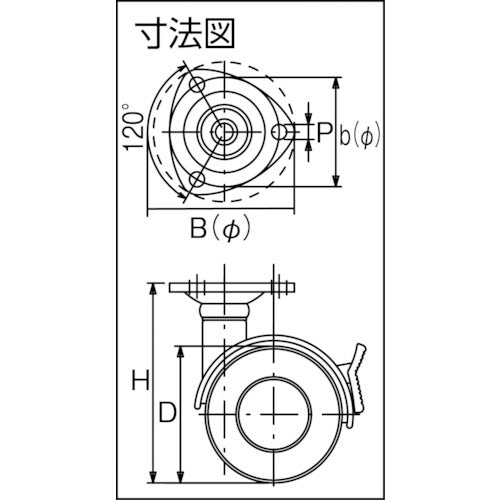

Catalogue number: US40-P Features: ●The body is die-cast and chrome-plated, giving it a luxurious feel. A long-running standard caster. Applications: ●Medical equipment, furniture, store fixtures, etc. Specifications: ●Wheel diameter D (mm): 40 ●Type: Swivel (with stopper) ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 41.5 ●Mounting height H (mm): 60 ●Mounting seat A (mm): 46.5 ●Mounting seat B (mm): 46.5 ●Mounting pitch X (mm): 35 ●Mounting pitch b (mm): 35 ●Mounting hole diameter P (mm): 5.2 ●Plate type ●Swivel (with stopper) ●General-purpose design caster Material/Finish: ●Metal fittings: Cold-rolled steel plate (SPCC) ●Metal fittings surface treatment: Trivalent chromium plating finish ●Metal fittings: Die-cast ●Wheels: Nylon
