Toshin Plate-type double-wheel caster, diameter 40, swivel, TU40-P, 1 piece

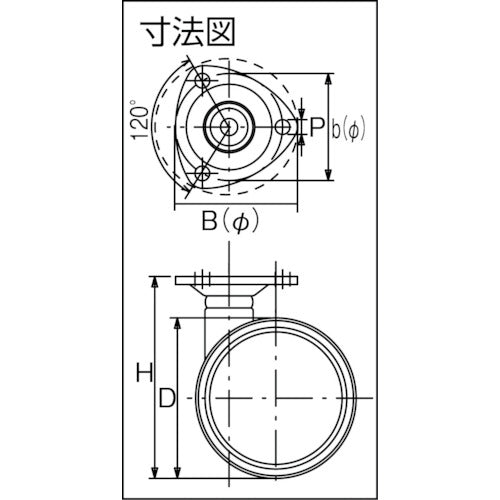

Catalogue number: TU40-P Features: ● Casters designed to reduce noise and prevent scratches on floors. Applications: ● Office equipment, furniture, store fixtures, medical equipment, etc. Specifications: ● Wheel diameter D (mm): 40 ● Type: Swivel ● Allowable load (daN): 40 ● Allowable load (kgf): 41 ● Wheel width (mm): 41.5 ● Mounting height H (mm): 54.5 ● Mounting seat A (mm): 46.5 ● Mounting seat B (mm): 46.5 ● Mounting pitch X (mm): 35 ● Mounting pitch b (mm): 35 ● Mounting hole diameter P (mm): 5.2 ● Plate type ● Swivel ● General-purpose design caster Materials/Finish: ● Metal fittings: Cold-rolled steel plate (SPCC) ● Metal fittings surface treatment: Trivalent chromium plating finish ● Body: Nylon ● Wheels: Urethane elastomer
