Toshin Plate-type double-wheel caster, diameter 50, swivel, TW50-P, 1 piece

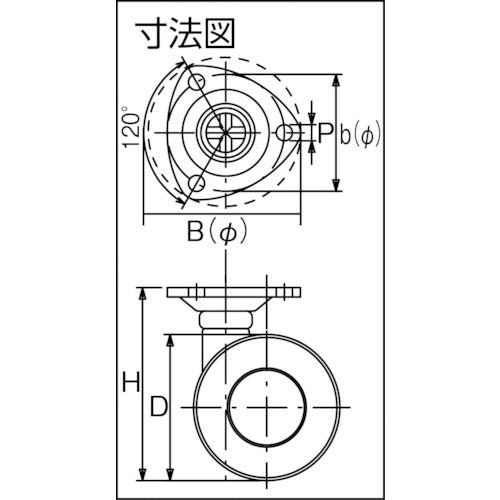

Catalogue number: TW50-P Features: ●The body is die-cast and chrome-plated, giving it a luxurious feel. This is a medium-weight, long-running standard caster. Applications: ●Medical equipment, furniture, store fixtures, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 80 ●Allowable load (kgf): 81 ●Wheel width (mm): 44.5 ●Mounting height H (mm): 66 ●Mounting seat A (mm): 54 ●Mounting seat B (mm): 54 ●Mounting pitch X (mm): 40 ●Mounting pitch b (mm): 40 ●Mounting hole diameter P (mm): 5.5 ●Plate type ●Swivel type ●Medium-weight, general-purpose design caster Materials/Finish: ●Metal fittings: Cold-rolled steel plate (SPCC) ●Metal fittings surface treatment: Trivalent chromium plating finish ●Metal fittings: Die-cast ●Wheels: Nylon
