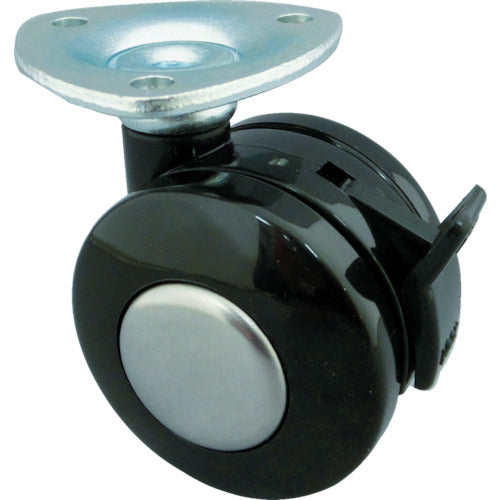

Toshin Plate-type double-wheel caster, diameter 60, with free stopper, TS60-P, 1 piece

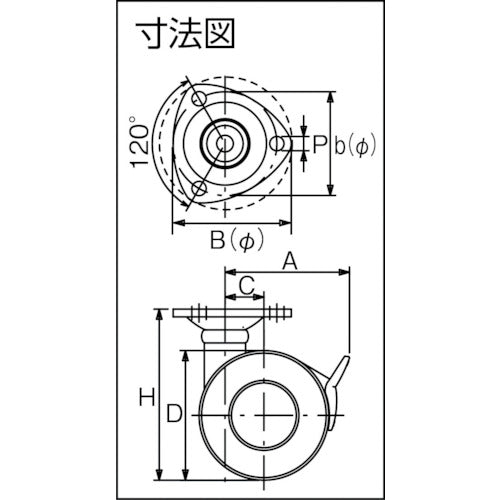

Catalogue number: TS60-P Features: ●Standard type, inexpensive, and with a large allowable load, this is a general-purpose caster for a wide range of applications. Applications: ●Office equipment, furniture, store fixtures, medical equipment, camera equipment, musical instruments, etc. Specifications: ●Wheel diameter D (mm): 60 ●Type: Swivel (with stopper) ●Allowable load (daN): 80 ●Allowable load (kgf): 81 ●Wheel width (mm): 46.0 ●Mounting height H (mm): 76.5 ●Mounting seat A (mm): 54.0 ●Mounting seat B (mm): 54 ●Mounting pitch X (mm): 40 ●Mounting pitch b (mm): 40 ●Mounting hole diameter P (mm): 5.5 ●Plate type ●Swivel type (with stopper) ●General-purpose design caster Material/Finish: ●Metal fittings: Cold-rolled steel plate (SPCC) ●Metal fittings surface treatment: Trivalent chromium plating finish ●Body: Nylon ●Wheels: Nylon
