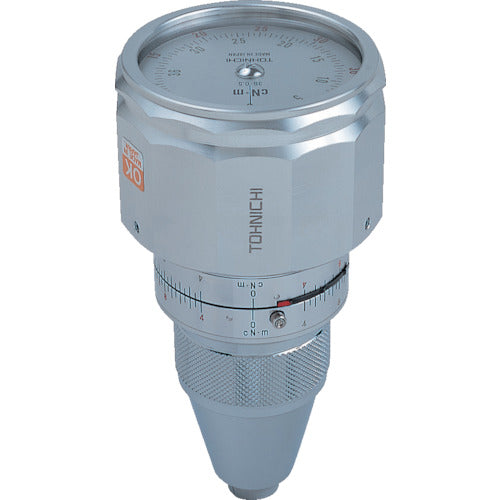

TOHNICHI Torque Gauge, Torque Measurement Range 20-150, Minimum Scale 2, BTG150CN-S, 1 pc

Catalog number: BTG150CN-S Features: ● Equipped with left and right torque scales. ● Ideal for measuring minute torques on precision machinery and electronic devices, as well as assembly work. ● Can be used to measure torque on rotating objects. ● The tip is a three-jaw chuck that securely clamps the object being measured. ● The dial scale rotates 270° left and right, and there is a stopper to prevent overload, so it is safe. ● There are scales on the side (with a pointer) so it can be read from any position. ● Pressing the push lock button fixes the main body and the chuck side, making it easy to chuck the workpiece. ● Equipped with a pointer on the front. Applications: ● For inspecting and tightening minute torques. Specifications: ● Measurement range (cN・m): 20 to 150 ● Minimum scale (cN・m): 2.0 ● Overall length (mm): 135 ● Outer diameter (mm): 64.2 ● Chuck range (mm): 1 to 8.5 ● Load direction: left and right ● Torque accuracy: ±2% ● Torque range (m): 20 to 150cN･ ● Accuracy: ±2% ● With retention needle
