TOHNICHI Ring Head, Allowable Torque 7.2, Total Length 42mm, Two-Sided Dimension 8.0mm, RH8DX8, 1 Piece

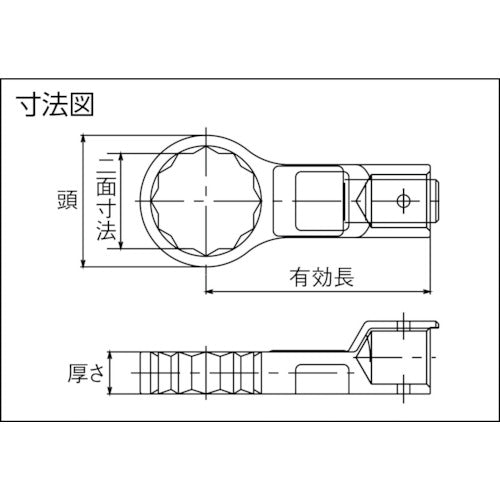

Catalog number: RH8DX8 Features: ● The RH type ring head has a constant distance between the bolt and the head center axis, allowing for accurate tightening. Specifications: ● Compatible torque wrenches: torque wrenches with "X8D" in the part number ● Total length (mm): 42 ● Insert diameter (φ): 8 ● Thickness (mm): 6 ● Effective length (mm): 35 ● Allowable torque (N・m): 7.2 ● Two-sided width dimension (mm): 8 ● Dimensions (mm) Head: 13.5 ● Dimensions (mm) Thickness: 6
