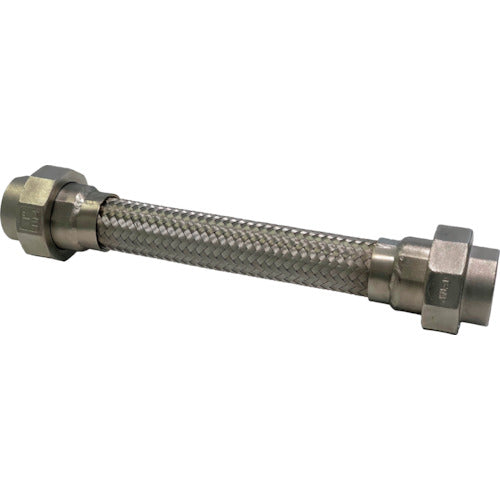

Tofle FTAP Union Welded Type Flex (with Fluorine Resin Gasket) Stainless Steel Fitting 10AX1000L FTAP-1110-1000-SUSE 1 Piece

Catalog number: FTAP-1110-1000-SUSE Features: ● Thick tube with uniform peak and valley, no uneven thickness, excellent durability when used repeatedly. ● Eliminates twisting at the neck of the tube, which is a drawback of spiral-shaped tubes, and improves durability. ● Low cost is achieved through global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ● For absorbing misalignment of piping and vibration. Specifications: ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 ● Total length (mm): 1000 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -50℃ to 300℃ ● Connection method: Union connection (SUS) ● Compatible fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ● Operating temperature range: 0 to 100℃ Material/Finish: ● Flexible part: Stainless steel (SUS304) ● Metal fittings: Stainless steel (SUS304)
