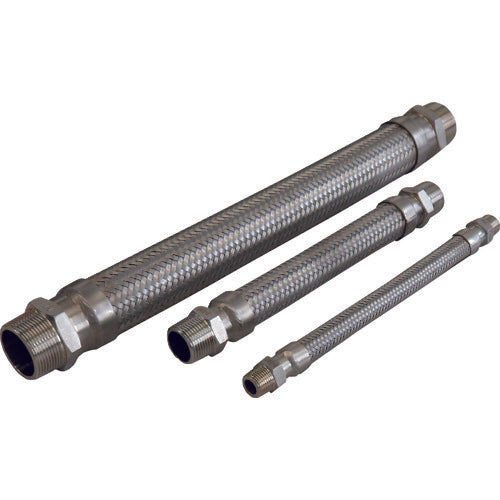

Tofle FTAP Welded Flexible Joint Stainless Steel Male x Male 10AX500L FTAP-5010-500-MM 1 Piece

Catalog number: FTAP-5010-500-MM Features: ●A thick tube with uniform peaks and valleys, with no uneven thickness, making it highly durable when used repeatedly. ●It has improved durability by eliminating the twisting at the neck of the tube, a drawback of spiral-shaped tubes. ●Low cost achieved through global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 500 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -196 to 300 ●Connection method: Fixed male thread on both ends ●Compatible fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ●Maximum operating pressure: 1MPa ●Applicable fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ●Operating temperature range: -196 to 300℃ Material/Finish: ●Flexible part, union part: Stainless steel (SUS304)
