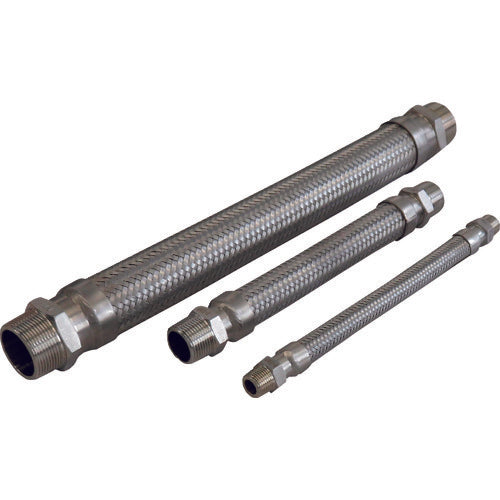

Tofle FTAP Welded Flexible Joint Stainless Steel Male x Male 20AX1000L FTAP-5020-1000-MM 1 Piece

Catalog number: FTAP-5020-1000-MM Features: ● Thick tube with uniform peaks and valleys, no uneven thickness, excellent durability when used repeatedly. ● Eliminates twisting at the neck of the tube, a drawback of spiral-shaped tubes, and improves durability. ● Low cost achieved by global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ● For absorbing misalignment of piping and vibration absorption. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Total length (mm): 1000 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): -196 to 300 ● Connection method: Fixed male thread on both ends ● Suitable fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ● Maximum operating pressure: 1MPa ● Operating temperature range: -196 to 300℃ Material/Finish: ● Flexible part, union part: Stainless steel (SUS304)
