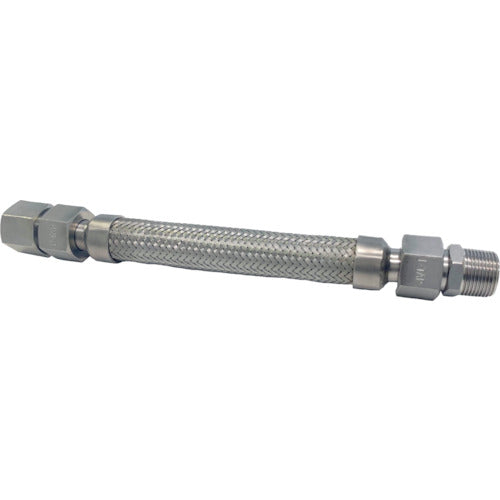

Tofle FTAP Welded Flexible Pipe with Cap Nut, Stainless Steel Male x Female, 25AX300L, FTAP-7025-300-MF, 1 Piece

Catalog number: FTAP-7025-300-MF Features: ●A thick tube with uniform peaks and valleys, with no uneven thickness, making it highly durable when used repeatedly. ●It has been made more durable by eliminating the twisting at the neck of the tube, a drawback of spiral-shaped tubes. ●Low cost achieved through global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Total length (mm): 300 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -196 to 300 ●Connection method: One end loose female thread + one end loose female thread (cap nut + male thread/female thread) ●Compatible fluids: cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ●Maximum operating pressure: 1MPa ●Operating temperature range: -196 to 300℃ Material/Finish: ●Flexible part, union part: Stainless steel (SUS304)
