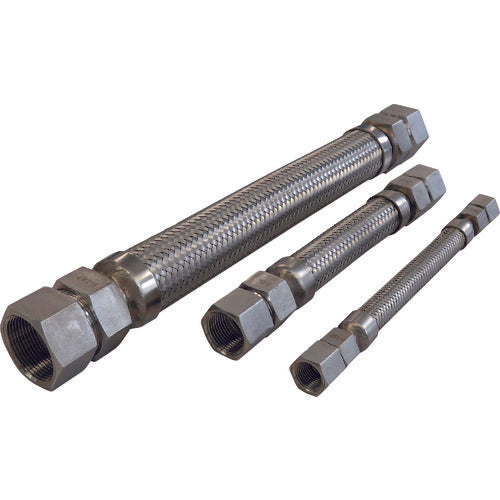

Tofle FTAP Welded Flexible Pipe with Cap Nuts, Stainless Steel, Female x Female, 10AX1000L, FTAP-7010-1000-FF, 1 Piece

Catalog number: FTAP-7010-1000-FF Features: ● Thick tube with uniform peaks and valleys, no uneven thickness, excellent durability when used repeatedly. ● Eliminates the drawback of spiral tubes, which is twisting at the neck, improving durability. ● Realized low cost through global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ● For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 1000 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -196 to 300 ●Connection method: Loose threads on both ends (cap nut + thread) ●Compatible fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ●Maximum operating pressure: 1MPa ●Applicable fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ●Operating temperature range: -196 to 300℃ Material/Finish: ●Flexible part, union part: Stainless steel (SUS304)
