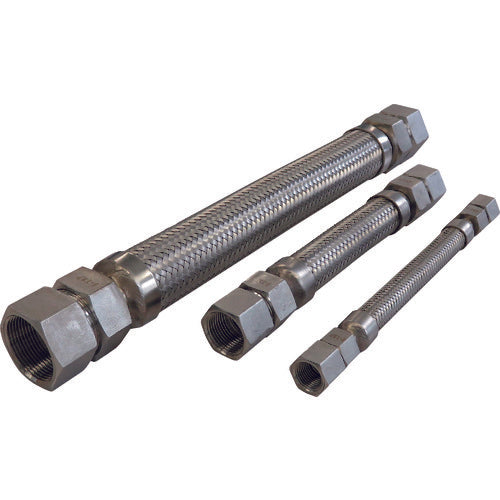

Tofle FTAP Welded Flexible Pipe with Cap Nuts, Stainless Steel, Female x Female, 25AX1000L, FTAP-7025-1000-FF, 1 Piece

Catalog number: FTAP-7025-1000-FF Features: ● Thick tube with uniform peaks and valleys, no uneven thickness, excellent durability when used repeatedly. ● Eliminates twisting at the neck of the tube, a drawback of spiral-shaped tubes, and improves durability. ● Low cost achieved by global production at the Tofle Group's Indonesian factory and Tofle Japan quality. Applications: ● For absorbing misalignment of piping and vibration absorption. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● Total length (mm): 1000 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): -196 to 300 ● Connection method: Loose female threads on both ends (cap nut + female thread) ● Suitable fluids: Cold and hot water, steam, oil, gas (limited to non-corrosive fluids) ● Maximum operating pressure: 1MPa ● Operating temperature range: -196 to 300℃ Material/Finish: ● Flexible part, union part: Stainless steel (SUS304)
