Dry vacuum pump 6.65kPa DA-15D 1 unit
Dry vacuum pump 6.65kPa DA-15D 1 unit
AS ONE Best & Long-selling
AS ONE Recommended Specials
Dry Vacuum Pump DA Series
Evaporator related products
Featured
Laboratory Supplies
Liquid transfer, pressure increase and reduction pump
Organic Chemistry Special Feature
Pumps (vacuum, pressure, liquid delivery)
Research and Experimental Equipment
Research Equipment
Research Supplies Special
Vacuum pump (dry type)
Regular price
¥72,600
Regular price
Sale price
¥72,600
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

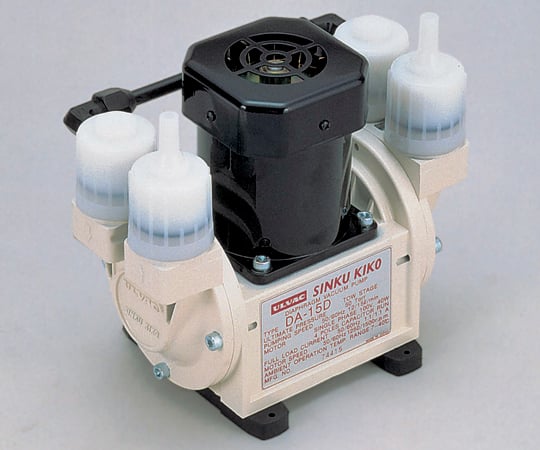

This is a diaphragm type dry vacuum pump.
It can be used with a 100V power supply, can withstand long periods of continuous operation, and is easy to maintain. Model number: DA-15D
Exhaust speed (L/min): 12/15 (50/60Hz)
Ultimate pressure (kPa): 6.65
Intake diameter (OD) x (ID) mm: 9 x 5
Built-in thermal protector
Power supply: 100V 50/60Hz
Size (mm): 135 x 203 x 182
Weight (kg): 3.9
Gas contact parts material: Pump head/aluminum die-cast, valve/fluororubber, diaphragm/NBR (nitrile rubber)
RoHS2 (EU)2015/863 compliant [About RoHS]
