Nile Slide Air Nipper Body SN10 SN10 1 unit

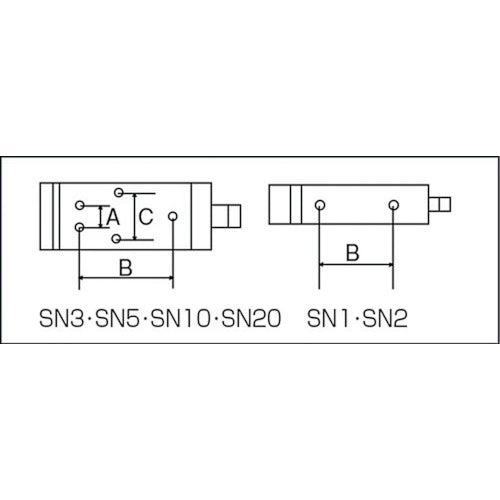

Catalog number: SN10 Features: ●The sliding section is a U-shaped guide rail type, minimizing wobble. ●With blade opening adjustment function, it can handle more precise work. (Excluding SN1) ●For machine installation. Applications: ●For resin molding industry. ●For removal machine manufacturers and set manufacturers. ●For ABS resin. Specifications: ●Cutting capacity (mm) ABS resin: 4 ●Pressure (N): 1254 ●Air consumption ([cm3]/time): 60 ●Air pressure (MPa) integrated: 0.4-0.5 ●Width (mm): 33 ●Depth (mm): 92 ●Height (mm): 97 ●Replacement blade for resin: FN3 ●Mounting holes (A×B×C): 18×45×25 ●Hose mounting port: For hose outer diameter 4 mm. ●Air pressure (MPa): 0.4-0.5 ●Pull cutting type ●Stroke adjustment is possible. ●Pull type cutting type. ●Air pressure: 0.4 to 0.5 MPa. Material/Finish: ●Aluminum (main body) Note: ●Blades are sold separately.
