Nile Slide Air Nipper Body SN2 1 unit

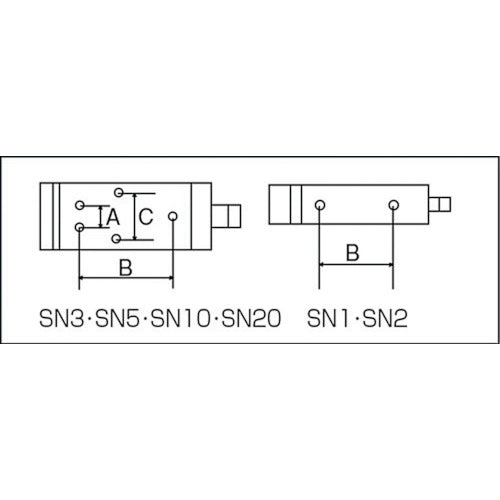

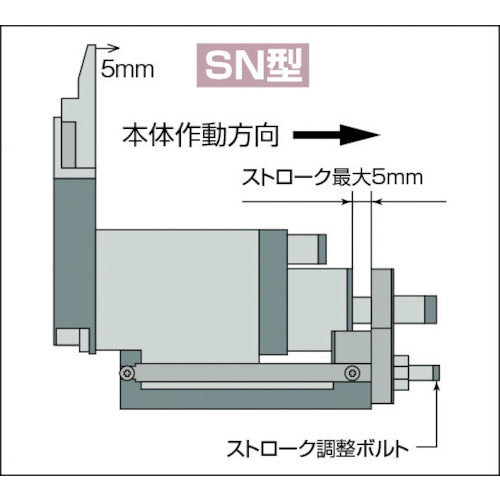

Catalog number: SN2 Features: ●The sliding section is a U-shaped guide rail type, minimizing wobble. ●With blade opening adjustment function, it can handle more precise work. (Excluding SN1) ●For machine installation. Applications: ●For resin molding industry. ●For removal machine manufacturers and set manufacturers. ●For ABS resin. Specifications: ●Cutting capacity (mm) ABS resin: 2 ●Pressure (N): 429 ●Air consumption ([cm3]/time): 21 ●Air pressure (MPa) integrated: 0.4-0.5 ●Width (mm): 19 ●Depth (mm): 80 ●Height (mm): 85 ●Replacement blade for resin: FN10 ●Mounting holes (A×B×C): -×30×- ●Hose mounting port: For hose outer diameter 4 mm. ●Air pressure (MPa): 0.4-0.5 ●Pull cutting type ●Stroke adjustment is possible. ●Pull type cutting type. ●Air pressure: 0.4-0.5 MPa. Material/Finish: Aluminum (Main body) Caution: Cannot cut metal. Blades sold separately.
