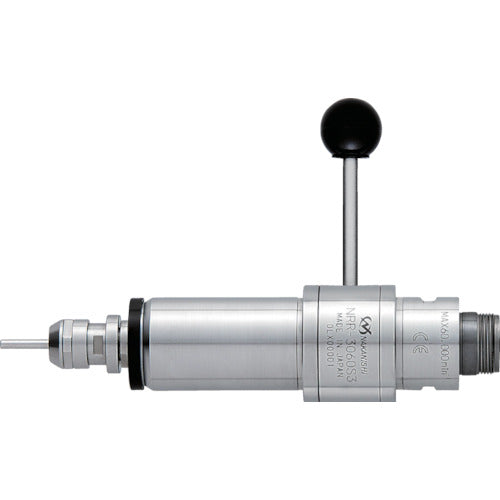

Nakanishi Lever-type quick change spindle (9208) NRR3060-QC 1 unit

Catalog number: NRR3060-QC Features: ●The E3000 series has a wide product line and is a full lineup. ●High-precision machining is possible with spindle runout accuracy of within 1 μm, and tool life is extended. ●The spindle and motor can be freely combined, allowing you to select the model according to your machining application. ●The lever mechanism allows for quick and easy collet holder replacement. ●Tools can be set in the collet holder outside the machine in advance, greatly improving setup work. ●Two types of collet holders and a wide range of collet sizes (CHK, CHA) are available. Specifications: ● Maximum rotation speed (min-1): 60000 ● Outer diameter (mm): φ30 (recommended clamping range) ● Total length (mm): 129.1 ● Applicable collet holder: QC3-A (for collet CHA), QC3-K (for collet CHK) ● Lever opening/closing angle: 90° Set contents/accessories: ● Spanner (22 x 27) x 1
