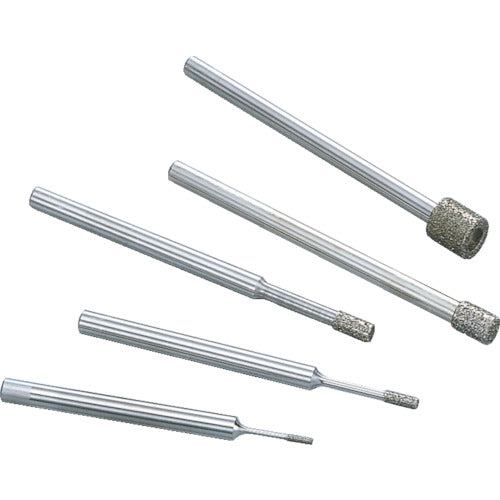

Nakanishi Ultra-small diameter electroplated diamond for internal grinding, shank diameter φ3, blade diameter 0.1 mm, 12001, 1 piece

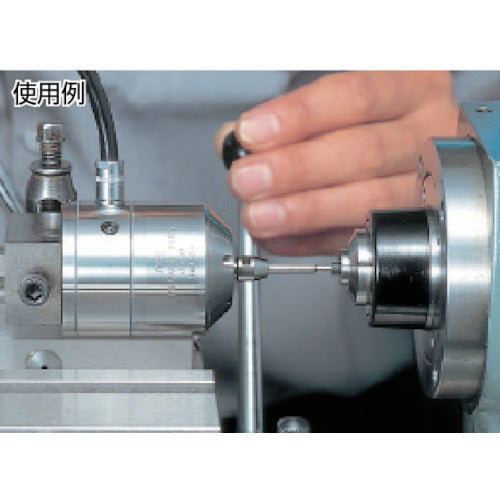

Catalog number: 12001 Features: ●High grinding performance and durability from internal extremely small hole processing to external diameter rough grinding. ●High rigidity minimizes runout during processing, enabling more precise processing. ●High grinding performance and durability from internal extremely small hole processing to external diameter rough grinding. ●High rigidity more than three times higher than that of stainless steel shafts, significantly improving work efficiency. ●Ideal for extremely small diameter hole processing, internal grinding, and jig grinding. Applications: ●Grind grinding of machine parts, electronic parts, precision parts, and molds. ●Processing of hard and brittle materials such as cemented carbide, ceramics, stone, glass, silicon, FRP, and ferrite. Specifications: ●Grit (#): 1000 ●Blade diameter (mm): 0.1 ●Blade length (mm): 1 ●Shaft diameter (mm): 3 ●Total length (mm): 40 ●Shape: Cylinder ●Maximum operating speed (rpm): 92000 ●Neck length (mm): 4 ●Abrasive grain: Diamond ●Quantity: 1 piece ●Shaft material: Carbide Caution: ●For safety, be sure to wear protective equipment such as safety glasses. ●Use at or below the maximum operating speed.
