Nakanishi Ultrasonic Cutter Sonic Cutter ZERO Set 100V (7781) 7781 1 S

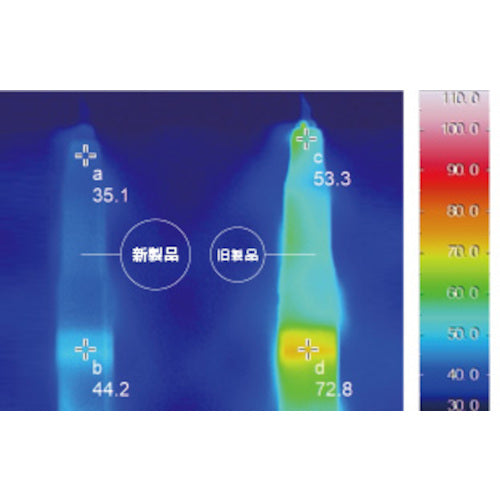

Catalog number: 7781 Features: ●High-performance cutter that uses ultrasonic vibrations at 38,000 to 40,000 times per second. ●Sharp cutting with a light touch, you can cut even complex shapes as you wish. ●A beautiful cut surface and finish can be obtained by ultrasonic vibrations. ●The operation panel design is easy to understand at a glance, and LEDs are used in the handpiece, so you can instantly see the ON/OFF state. ●It is 46% lighter than the previous product (old controller 2.6 kg → new controller 1.4 kg). ●By improving the vibrator, we have succeeded in reducing heat generation by up to 28.6°C compared to the previous product, achieving efficiency. ●Continuous use is possible with reduced temperature rise (an error will stop if the temperature rises rapidly). ●Vibrations are not transmitted to the hands, so you can cut as you wish. Applications: ●For cutting complex shapes and precision (fabric, rubber, film, plastic, urethane, pattern correction of printed circuit boards, etc.). ●For cutting, cutting, window cutting, design cutting, deburring, etc. of various thin materials. Specifications: ● Oscillator frequency (kHz): 38-40 ● Oscillator input (V) 50/60Hz: 100 ● Oscillator rated current (A): 0.24 ● Oscillator mass (kg): 1.4 ● Power consumption (W): 24 ● Handpiece cord length (m): 3 ● Handpiece external dimensions (mm): Maximum φ25 x 166 (L) ● Power cord length (m): 2 ● Frequency adjustment: Automatic tracking type ● Instantaneous maximum output (W): 30 ● Output adjustment: 21-step variable type ● Frequency adjustment: Automatic tracking type ● Power supply: AC100V Set contents/accessories: ● 1 controller, 1 handpiece, 40 dedicated replacement blades (NT Corporation BDC-200P 30°), 2 hex wrenches (2mm), 4 spare set screws (M4 x P0.7 x L4), spare fuse (T1.6AH 250V) x 2, O-ring x 1, power cord (2m) x 1
