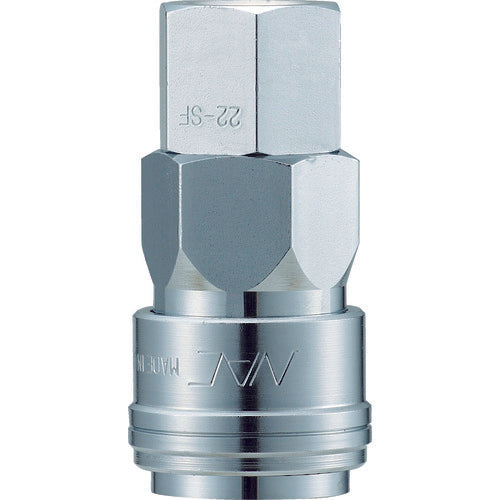

NAC Quick Coupling New One-Touch Male Thread Mounting Socket R1/4 CAT22SF 1 pc

Catalog number: CAT22SF Features: ●One-touch connection by simply inserting the AL type 20. This type has a flow rate up to 15% higher than the AL type 20. ●Can be connected and disconnected with one touch. Applications: ●For air piping and pneumatic tools in factories. Specifications: ●Fluid used: Air and others ●Maximum operating pressure (MPa): 1.0 ●Compatible connection size (inch): R1/4 ●Maximum impact pressure (MPa): 1.5 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve ●One-touch connection Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●Make sure the fluid flows from the socket side to the plug side.
