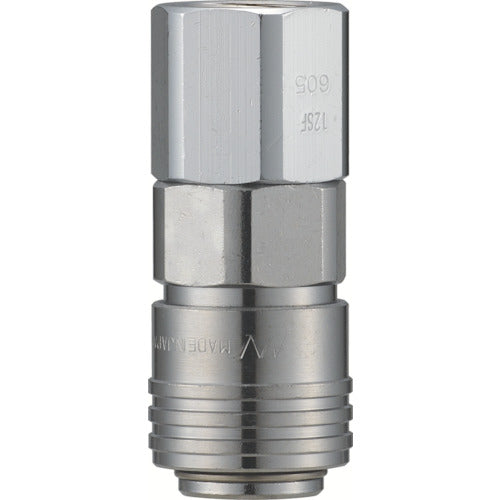

NAC Quick Coupling AL10 Type (Super 10) Brass Male Thread Mounting CAL12SF 1 Piece

Catalog number: CAL12SF Features: ●Lightweight design and one-touch connection coupling with excellent operability ●Excellent workability, extremely easy untwisting of sockets and plugs. Applications: ●Fluid coupling Specifications: ●Maximum operating pressure (MPa): 1.0 ●Connection shape size (inch): R1/4 ●Maximum impact pressure (MPa): 1.5 ●Operating temperature range: -20 to +80°C ●Single valve Material/Finish: ●Body material: Brass ●Plating: Chrome plating ●Seal material: Nitrile rubber (NBR) Caution: ●Do not use for purposes other than as a fluid coupling.
