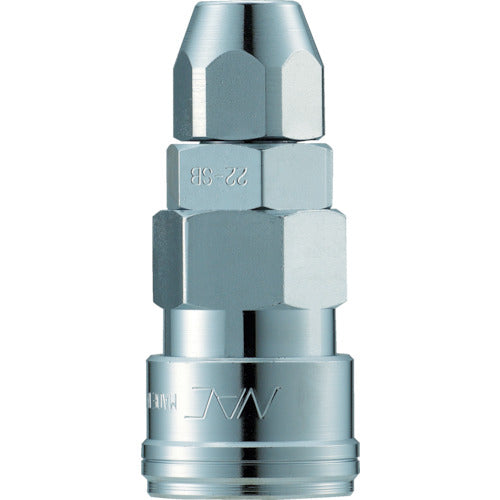

NAC Quick Coupling AL20 Type Steel Urethane Hose Mounting Socket 11.0 x 16.0 CAL24SA 1 pc

Catalog number: CAL24SA Features: ●Can be installed without fixing the tube with a band. ●Compatible with all AL type 20 plugs. Applications: ●For chemical tubes such as polyurethane tubes. Specifications: ●Fluid used: Air and others ●Maximum operating pressure (MPa): 1.5 ●Maximum impact pressure (MPa): 2.0 ●Applicable hose (mm) inner diameter x outer diameter: 11.0 x 16.0 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●Fluid should flow from the socket side to the plug side.
