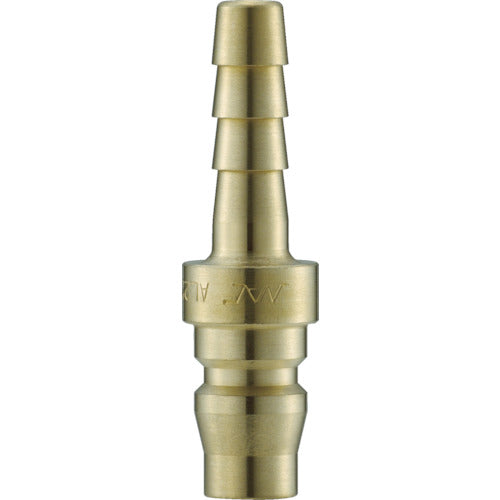

NAC Quick Coupling AL40 Type Brass Hose Mounting Plug 1 CAL48PH2 1 pc

Catalog number: CAL48PH2 Features: ●A wide variety of materials, sizes, and mounting shapes make it highly versatile. Applications: ●For air piping in factories and pneumatic tools. Specifications: ●Fluids used: air, water, etc. ●Maximum operating pressure (MPa): 1.0 ●Compatible hose size (inch): 1 ●Maximum impact pressure (MPa): 1.5 ●Operating temperature range: -20 to 80°C ●Plug for single valve Material/Finish: ●Body: Brass Caution: ●Make sure the fluid flows from the socket side to the plug side.
