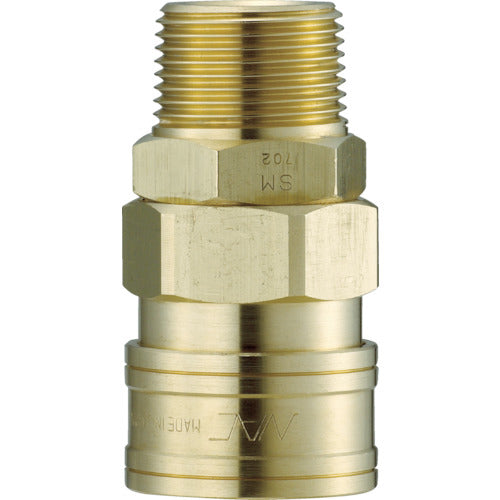

NAC Quick Coupling AL40 Type Brass Female Thread Mounting Socket Rc3/4 CAL46SM2 1 pc

Catalog number: CAL46SM2 Features: ●A wide variety of materials, sizes, and mounting shapes make it highly versatile. Applications: ●For air piping in factories and pneumatic tools. Specifications: ●Fluids used: air, water, etc. ●Maximum operating pressure (MPa): 1.0 ●Compatible connection size (inch): Rc3/4 ●Maximum impact pressure (MPa): 1.5 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve Material/Finish: ●Body: Brass ●Seal rubber: Nitrile rubber (NBR) Caution: ●Make sure the fluid flows from the socket side to the plug side.
