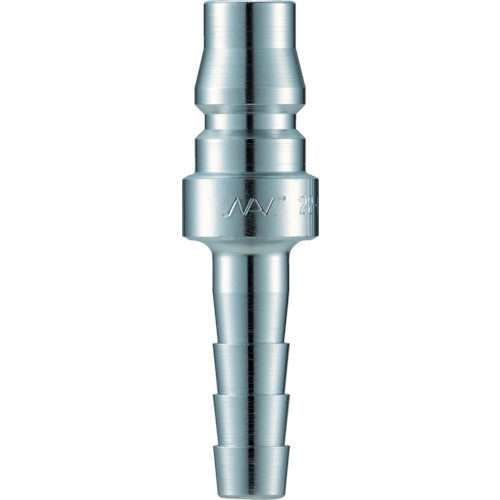

NAC Quick Coupling AL40 Type Steel Hose Mounting CAL48PH 1 Piece

Catalog number: CAL48PH Features: ●A wide variety of materials, sizes, and mounting shapes make it highly versatile. Applications: ●For air piping and pneumatic tools in factories. Specifications: ●Matching hose size (inches): 1 ●Fluid used: air, oil, etc. ●Maximum operating pressure (MPa): 1.5 ●Maximum impact pressure (MPa): 2.0 ●Operating temperature range: -20 to 80°C ●Plug for single valve Material/Finish: ●Body: Steel Caution: ●Make sure the fluid flows from the socket side to the plug side.
