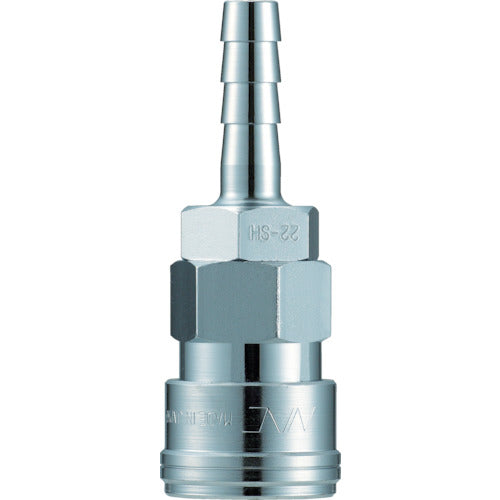

NAC Quick Coupling AL40 Type Steel Hose Mounting CAL48SH 1 Piece

Catalog number: CAL48SH Features: ●A wide variety of materials, sizes, and mounting shapes are available for versatility, and the main parts are hardened for excellent durability and abrasion resistance. Applications: ●For air piping and pneumatic tools in factories. Specifications: ●Matching hose size (inches): 1 ●Fluid used: air, oil, etc. ●Maximum operating pressure (MPa): 1.5 ●Maximum impact pressure (MPa): 2.0 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●Fluid should flow from the socket side to the plug side.
