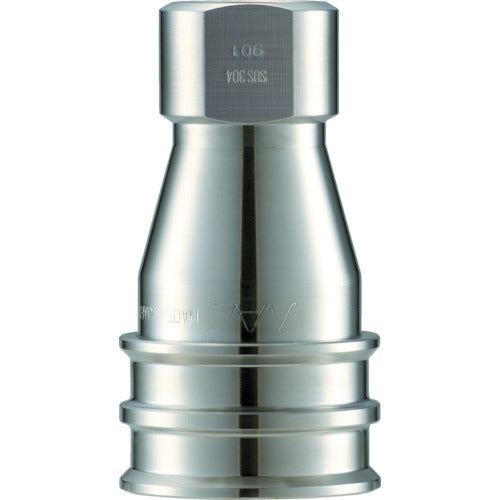

NAC Quick Coupling SPE Type Stainless Steel Male Thread Mounting Socket R3/4 CSPE06S3 1 pc

Catalog number: CSPE06S3 Features: ●Achieved high flow rate by pursuing ideal flow. PAT.P and Nippon Kaiji Kyokai (NK) type certified product (including overseas) ●Maximum 188% compared to the average flow rate of conventional CSP. (Varies depending on the diameter.) Specifications: ●Usable fluid: air, water, hydraulic oil, etc. ●Maximum operating pressure (MPa): 4.5 ●Compatible connection size (inch): R3/4 ●Maximum impact pressure (MPa): 6.5 ●Large flow rate type ●Usable temperature range: -20 to 180°C ●Two-way opening and closing type ●Both valves Material/Finish: ●Body: Stainless steel (SUS304) ●Seal rubber: Fluorine rubber (FKM) Note: ●Please specify as the seal material differs depending on the fluid.
