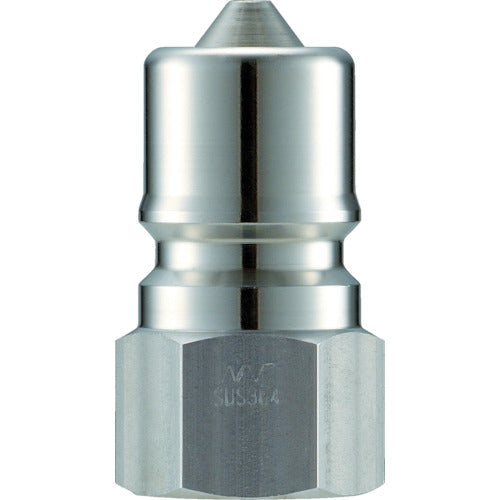

NAC Quick Coupling SPE Type Stainless Steel Male Thread Mounting Plug R1/4 CSPE02P3 1 pc

Catalog number: CSPE02P3 Features: ● Achieves high flow rate by pursuing ideal flow. PAT.P including overseas and Nippon Kaiji Kyokai (NK) type approved product Specifications: ● Fluid used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 7.5 ● Compatible connection size (inch): R1/4 ● Maximum impact pressure (MPa): 10.0 ● Large flow rate type ● Operating temperature range: -20 to 180°C ● Two-way opening and closing type ● Double valve Material/Finish: ● Body: Stainless steel (SUS304) ● Sealing rubber: Fluorine rubber (FKM) Note: ● Please specify as the sealing material will vary depending on the fluid.
