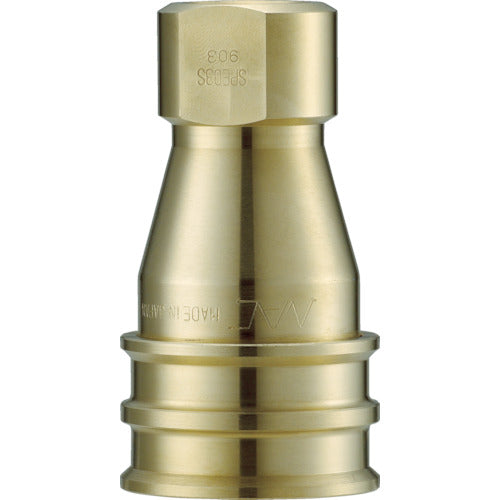

NAC Quick Coupling SPE Type Brass High Flow Type Male Thread Mounting Double Open/Close Type CSPE08S2 1 pc

Catalog number: CSPE08S2 Features: ●Achieves high flow rate by pursuing ideal flow. PAT.P including overseas Specifications: ●Fluid used: air, water, hydraulic oil, etc. ●Maximum operating pressure (MPa): 3.0 ●Compatible connection size (inch): R1 ●Maximum impact pressure (MPa): 4.5 ●Large flow rate type ●Operating temperature range: -20 to 180°C ●Two-way opening and closing type ●Double valve Material/Finish: ●Body: Brass ●Seal rubber: Fluorine rubber (FKM) Note: ●Please specify as the seal material will vary depending on the fluid.
