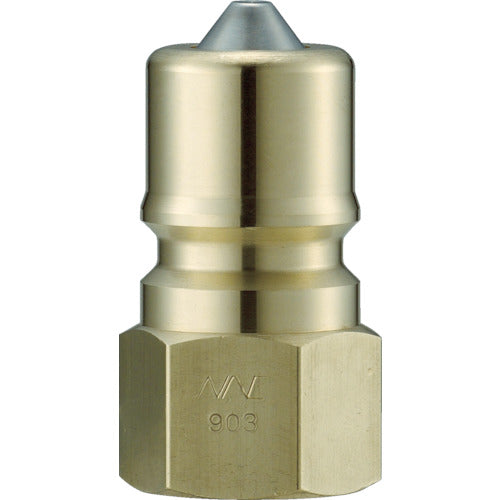

NAC Quick Coupling S/P Type Brass Male Thread Mounting CSP10P2 1 pc

Catalog number: CSP10P2 Features: *The automatic valve closes the passage at the same time as separation, preventing fluid loss and air mixing. Specifications: *Fluids used: air, water, hydraulic oil, etc. *Maximum operating pressure (MPa): 2.0 *Compatible connection size (inch): R1 1/4 *Maximum impact pressure (MPa): 3.0 *High flow rate type *Operating temperature range: -20 to 180°C *Double-way opening and closing type *Double valve Material/Finish: *Body: brass *Seal rubber: Fluorine rubber (FKM) Note: *Please specify as the seal material differs depending on the fluid.
