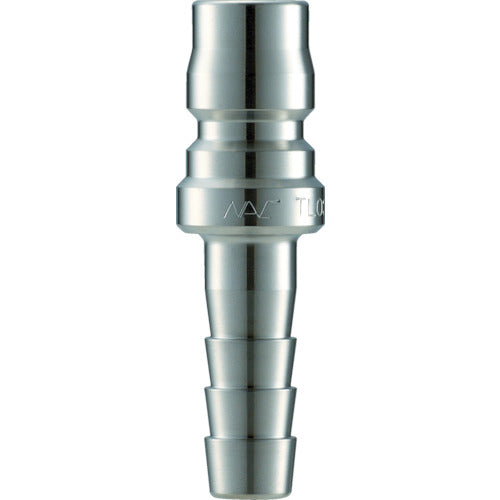

NAC Quick Coupling TL Type Stainless Steel Hose Mounting Plug 1/8 CTL01PH3 1 pc

Catalog number: CTL01PH3 Features: ● A through-type with no valve mechanism, it is suitable for fluids with high viscosity and has little pressure loss. Specifications: ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 7.5 ● Compatible hose size (inch): 1/8 ● Maximum impact pressure (MPa): 10.0 ● Operating temperature range: -20 to 180°C ● Valveless Material/Finish: ● Body: Stainless steel (SUS304) Caution: ● Please note that as the size increases, the pressure resistance decreases.
