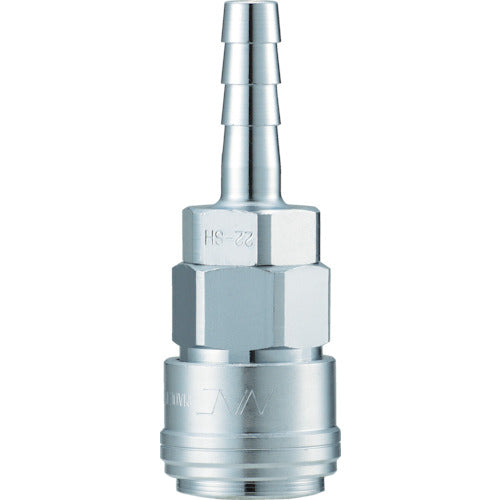

NAC One-touch coupling AT type iron sleeve for hose installation CAT23SH 1 piece

Catalog number: CAT23SH Features: ●One-touch connection by simply inserting the AL type 20. This type has a maximum flow rate of 15% or more higher than the AL type 20. ●Can be connected and disconnected with one touch. Applications: ●For air piping and pneumatic tools in factories. Specifications: ●Matching hose size (inch): 3/8 ●Fluid used: Air and others ●Maximum operating pressure (MPa): 1.0 ●Maximum impact pressure (MPa): 1.5 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve ●One-touch connection Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●Make sure the fluid flows from the socket side to the plug side.
