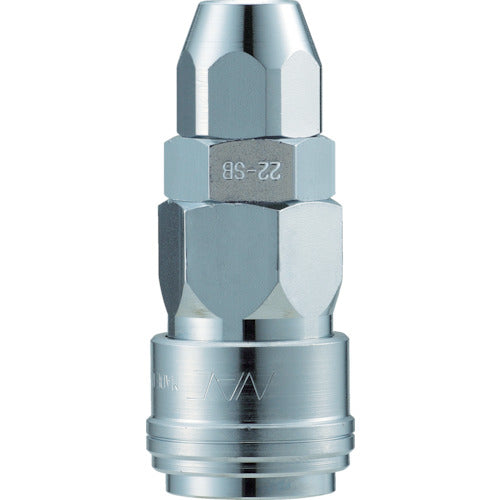

NAC One-touch coupling AT type Iron sleeve For polyurethane tube 5.0 x 8.0 CAT21SA 1 piece

Catalog number: CAT21SA Features: ●One-touch connection by simply inserting the AL type 20 model. It can be installed without fastening the tube with a band. ●One-touch connection and removal. Applications: ●For chemical tubes such as polyurethane tubes. Specifications: ●Fluid used: Air and others ●Maximum operating pressure (MPa): 1.0 ●Maximum impact pressure (MPa): 1.5 ●Applicable hose (mm) inner diameter x outer diameter: 5.0 x 8.0 ●Operating temperature range: -20 to 80°C ●One-way opening and closing type ●Single valve ●One-touch connection Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●Fluid should flow from the socket side to the plug side.
