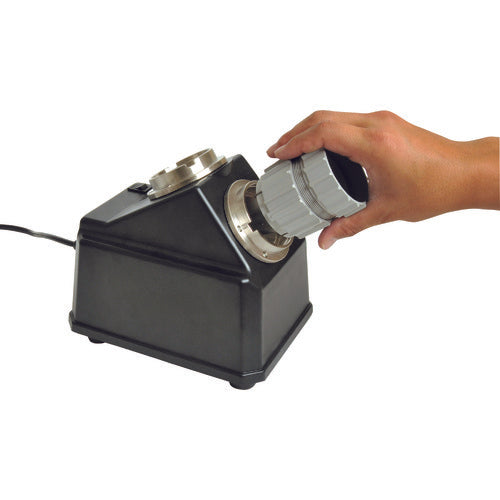

Nishigaki Drill Bit X14A with Chuck N-500 1 unit

Catalogue number: N-500 Features: ●After setting the cutting edge, simply insert it into the grinding machine body to grind. ●X-shaped thinning grinding is possible. Applications: ●Straight drills for metalworking: 2.6-14 mm ●Hexagonal shaft drills for metalworking: 7.1-14 mm ●For grinding cobalt high speed steel and titanium coated drills Specifications: ●Motor rotation speed (rpm) (50Hz/60Hz): 18500min ●Polishable size (mm): Straight shaft 2.6-14/Hexagonal shaft 7.1-14●Width (mm): 201●Depth (mm): 189●Height (mm): 157●Power supply (V): 100●Output (W): 148●Power consumption (W): 95●Power cord length (m): 2.8●Grinding wheel material: CBN grinding wheel●Grinding wheel diameter (mm): 50●Grinding wheel dimensions (mm) outer diameter x thickness: 50 x 10●Drill tip angle (°): 118●Edge grinding angle (°): 118●Grit (#): 200●Rated time: 15 minutes●Motor rotation speed (rpm): 18700●Outer diameter (mm): 50●Edge grinding angle: 118°●Escape angle: 10°●Sinning shape: X-type●Power supply: Single-phase 100V●Motor rated power consumption: 95W●Motor rated time: 15 minutes●Cord length: 2.8m Material/Finish: ●Grinding machine body: ABS resin ●Blade tip setter: ABS resin ●Chuck: ABS resin Set contents/Accessories: ●Blade tip setter ●A chuck ●Instruction manual Caution: ●Cannot be used to grind carbide drills or concrete drills.
