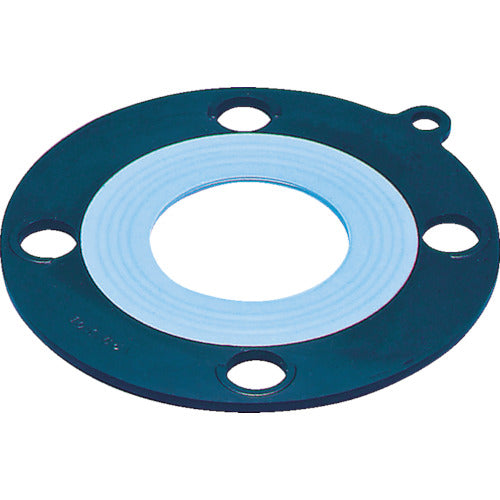

Nichias Evilon Gasket TOMB No. 9013 10K 65A 9013-10K65A 1 piece

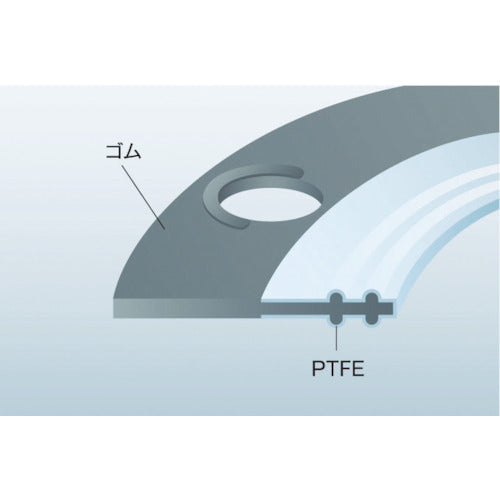

Catalog number: 9013-10K65A Features: * A gasket with excellent sealing performance that combines the elasticity of rubber and the corrosion resistance of fluororesin (PTFE). * Ring-shaped seal structure provides excellent sealing performance. * A gasket in which PTFE film is pressurized and heated to form a tight bond around a rubber (EPDM) core. Applications: * For use in areas where little tightening force is applied, such as PVC piping or glass-lined piping. ●For fluids that require chemical resistance Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Inner diameter (mm): 69 ●Outer diameter (mm): 173 ●Thickness (mm): 5 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 140 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Operating temperature range: -40 to 150°C ●Flange shape: full seat ●Coating material PTFE complies with the Food Sanitation Act and standards for food, additives, etc. (Ministry of Health and Welfare Notification No. 370, 1959) ●Maximum operating pressure: 2Mpa Materials/Finish: ●Core material: Rubber (EPDM) ●Coating material: PTFE
