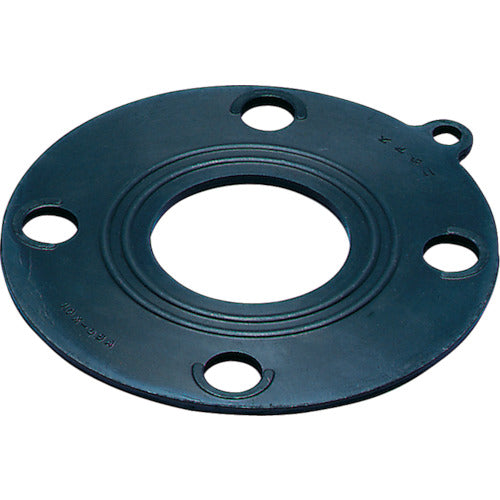

Nichias Evilon Gasket TOMB No. 9013-EP 10K 250A 9013-EP-10KX250A 1 piece

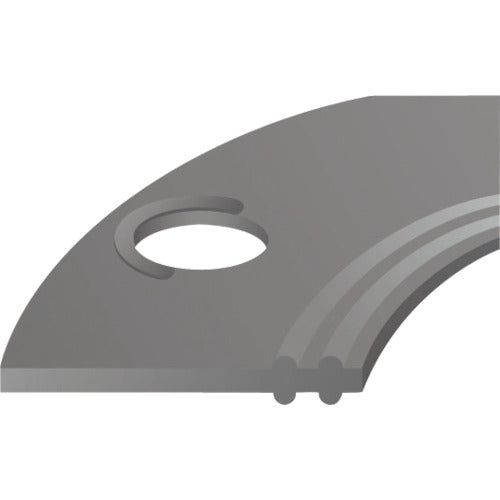

Catalog number: 9013-EP-10KX250A Features: ●Ring-shaped seal structure provides excellent sealing. Applications: ●For areas where little tightening force is applied, such as PVC piping and gas-lined piping. Specifications: ●Nominal diameter A: 250 ●Nominal diameter B: 10 ●Inner diameter (mm): 249 ●Outer diameter (mm): 398 ●Thickness (mm): 5 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 355 ●Number of bolt holes (pcs): 12 ●Bolt hole diameter (mm): 25 ●Number of holes (pcs): 12 ●Applicable flange: Plastic 10K flange ●Operating temperature range: -40 to 150°C ●Maximum operating pressure: 1Mpa ●For full seat ●Complies with the Food Sanitation Act and standards for food, additives, etc. (Ministry of Health and Welfare Notification No. 370, 1959) Material/Finish: ●EPDM Caution: ●Please use PTFE-coated products for fluids that require strict chemical resistance.
