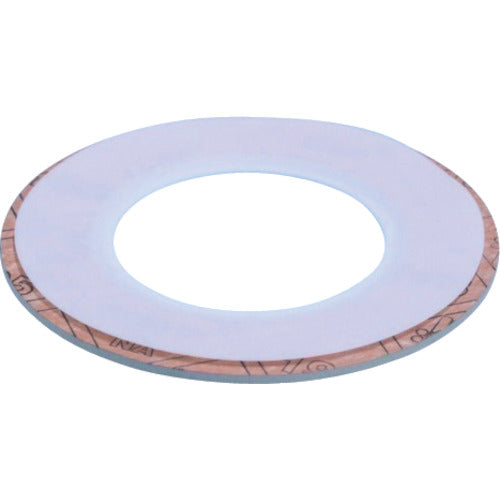

Nichias Naflon PTFE Cushion Gasket TOMB 9010-A-5 5K100A 9010-A-5-S T2.8X5KX100A RF 1 sheet

Catalog number: 9010-A-5-S T2.8X5KX100A RF Features: ●PTFE-wrapped gasket with highly compressively recoverable joint sheet as the core material and highly compatible PTFE as the coating. ●Cushioning properties, excellent sealing, chemical resistance, and purity. ●Excellent electrical insulation. ●Most commonly used as a gasket for stainless steel flanges. (Complies with the Ministry of Land, Infrastructure, Transport and Tourism's standard specifications for public building construction) Applications: ●A wide range of piping sealants, including air conditioning and sanitation equipment, fine chemicals, petrochemicals, pharmaceuticals, and food. ●Process lines requiring chemical resistance, high-purity chemicals, pharmaceuticals, and food lines requiring purity, and insulating areas. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Inner diameter (mm): 117 ●Outer diameter (mm): 149 ●Thickness (mm): 2.8 ●Operating pressure (K): 5 ●Color: White ●Operating temperature range: -100 to 150°C ●Maintenance-free: 100°C ●Maximum operating pressure: 1 to 2MPa Material/Finish: ●Coating material: Fluorine resin (PTFE) ●Core material: Joint sheet gasket Caution: ●Because the allowable surface pressure is low and compression failure is likely to occur, please be careful when tightening. ●The cross-sectional shape needs to be changed to prevent liquid accumulation on the inner diameter.
