Nichias TOMB0 No. 2280-S Super Seal Packing 9.5mm x 3m TOMBO NO.2280-S-9.5 1 roll

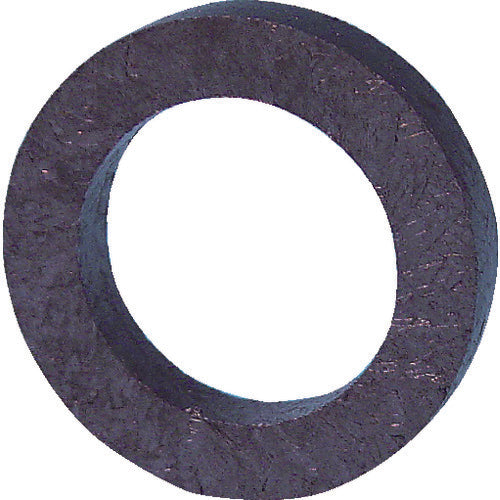

Catalog number: TOMBO NO.2280-S-9.5 Features: ● Compared to braided packings made of various fibers, it has excellent sealing properties. ● This is a packing for high-temperature valves, braided with expanded graphite reinforced with thin heat-resistant metal wires (316L steel), and treated with special lubricants, graphite, and corrosion prevention. Applications: ● Thermal power plants, oil refineries, shipbuilding, chemical plants, cryogenic plants, high-temperature gas plants, etc. Specifications: ● Color: Black ● Width (mm): 9.5 ● Length (m): 3 ● Height (mm): 9.5 ● Operating temperature range (℃): 400 ● This is a packing for high-temperature valves, braided with expanded graphite reinforced with thin heat-resistant metal wires (316L steel), and treated with special lubricants, graphite, and corrosion prevention. Material/Finish: Expanded graphite, heat-resistant metal wire (316L steel), special lubricant. Note: Cannot be used with oxidizing acids, oxidizing salts, halogen compounds, or combustible gases. The dimensions shown are the dimensions after installation and may differ from the actual dimensions. 2280-S has a rectangular cross-sectional shape. The photo is an image of the ring after it has been formed.
