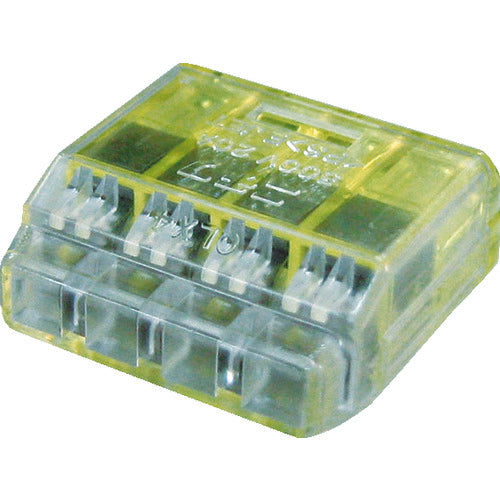

Nichifu Quick Lock Plug-in Wire Connector, 4 poles, Yellow transparent, 50 pieces, QLX 4, 1 box

Catalog number: QLX 4 Features: ● Unique two-point contact spring structure. ● Wiring can be visually confirmed through the transparent cover. ● Compliant with JIS C2816 (plug-in type electric wire connector for indoor wiring). (Certified inspection organization: <PS> E JET) Applications: ● For connecting stripped wires together. Specifications: ● Number of poles: 4 ● Color: Yellow transparent ● Compatible wire (copper wire) solid wire (mm): φ1.6-2.0 ● Wire clamping range solid wire (mm): φ1.6-2.0 ● Number of plugged wires (pieces): 4 ● Rated current: 20A ● Wire clamping range stranded wire (［［MM2］］): Not compatible with twisted wire ● Length (mm): 20.5 ● Compatible wire (［［MM2］］) stranded wire: Not compatible with twisted wire ● Compatible wire (mm) φ solid wire: φ1.6-2.0 ● Width (mm): 20.8 ● Height (mm): 9.1 ● Rated voltage (V): 300 ● Number of wires (pieces): 4 ● Rated voltage: 300V ● Maximum operating temperature: 80℃ ● Compatible wire (copper/solid wire): φ1.6mm, φ2.0mm Material/Finish: ●Spring: Stainless steel (SUS301) ●Conductive plate: Oxygen-free copper (C1020)/Tin plated ●Housing: Polycarbonate (PC) Caution: ●Strip the wire coating to match the strip gauge. ●Straighten any bent wires before use. ●Insert the wire straight all the way in and check visually. ●Insufficient insertion may cause heat generation. ●When placing in the box, do not bend the wire near the wire insertion port of the connector.
