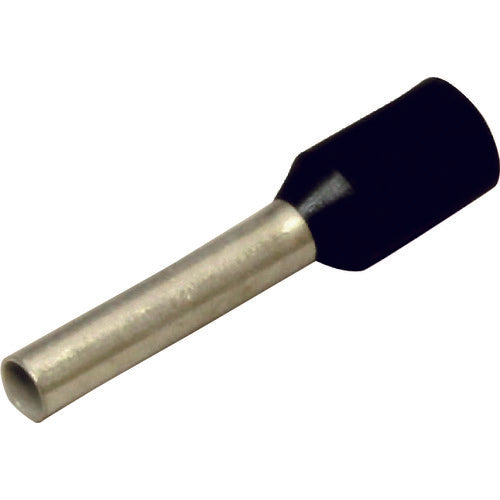

Nichifu Ferrule (200pcs) NF 1.5-10-BLK 1 PK

Catalog number: NF 1.5-10-BLK Features: ● Ferrule terminal with a copper sleeve on the contact surface (tongue) Applications: ● For connecting soft copper stranded wire and spring terminals Specifications: ● Wire compatibility range Stranded wire [MM2]: 1.5 ● Wire clamping range Stranded wire (MM2): 1.5 ● Wire compatibility range AWG: 16 ● Color: Black ● Total length (mm): 16 ● Stud diameter (mm): 1.8 ● L (mm): 10.0 ● D (mm): 3.3 ● ΦF (mm): 1.8 ● ΦD (mm): 3.3 ● l (mm): 10.0 Material/Finish: ● Terminal part: Copper sleeve (tin plated) ● Insulation part: Polypropylene (PP) Caution: ● For copper wire only.
