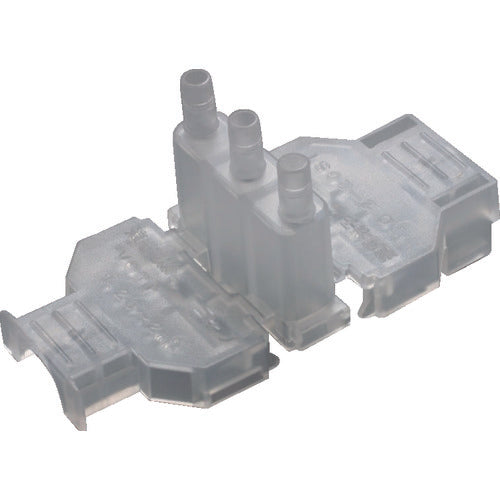

Nichifu Plug Joint Connector VCTF Connection Set (20 VCTF Covers/60 Rod-Shaped Crimp Terminals) Transparent Compatible Wire (Stranded Wire) 1.04-2.63 NPJ 3PV-S 1 Box

Catalog number: NPJ 3PV-S Features: ●Regarded as a joint box under the Electrical Appliance and Material Safety Act. ●Wiring can be easily changed by replacing the terminal block. ●The wire lock release lever allows you to remove the wire and reuse the connector. Applications: ●Connecting trunk and branch lines. Specifications: ● Number of poles: 3 ● Color: Transparent ● Compatible wire (copper wire) solid wire (mm): 1.6, 2.0 ● Number of plug-in wires (pieces): 3 ● Rated current: 20A ● Wire clamping range Stranded wire ([MM2]): Not compatible with twisted wire ● Compatible wire ([MM2]) Stranded wire: 1.04 to 2.63 ● Compatible wire (mm) φ solid wire: 1.6, 2.0 ● Rated voltage (V): 100 ● Number of wires (pieces): 3 ● Wire clamping range Solid wire (mm): 1.6, 2.0 ● Insulation operating temperature range: -40 to 120°C Material/Finish: ● Molded product: Polycarbonate ● Molded product: Polypropylene Set contents/Accessories: ● 20 VCTF covers, 60 rod-shaped crimp terminals
