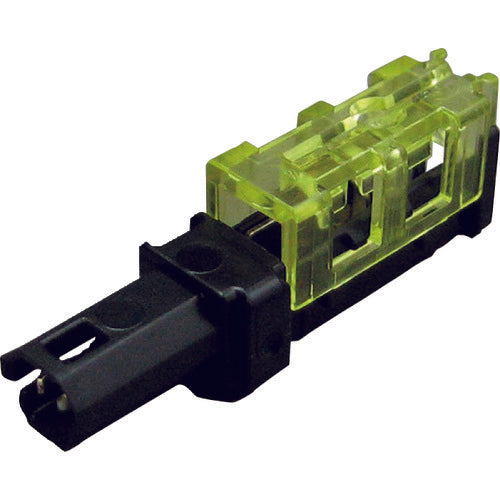

Nichifu Pressure Welding Relay Connector (20 pieces) NDC 2420 1 box

Catalogue number: NDC 2420 Features: ●Male and female connections are possible with a single connector. ●Connectors can be connected to make multi-pole connections. ●No need to strip wire insulation. ●Easy connection with pliers. ●RoHS compliant Specifications: ●Color: Yellow transparent ●Wire clamping range Stranded wire ([MM2]): 0.2-0.5 ●Length (mm): 25.9 ●Wire clamping range AWG: 24-20 ●Width (mm): 5.8 ●Height (mm): 6.4 ●Rated voltage (V): 100 ●Recommended tool: Pliers (JIS B 4614 Nominal 150) ●Compatible wire: VSFφ0.3 ●Weight per piece (g): 0.86 ●Maximum outer diameter of coating: φ2.1mm ●Operating temperature range: -20 to 75°C ●Working temperature range: 0 to 40°C Material/Finish: ●Polycarbonate (black) ●Polycarbonate (yellow transparent) ●Tin-plated phosphor bronze Caution: ●For copper wire. ●Do not use wires other than the applicable wires. ●Use within the rated voltage, rated current, operating temperature range, and working temperature range. ●Do not use outdoors. ●Once the wire is connected, it cannot be reused.
