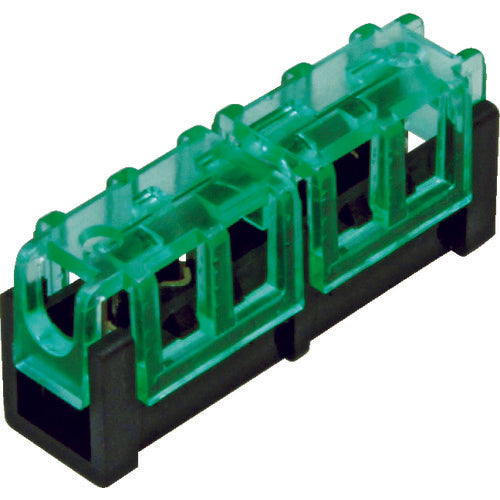

Nichifu Pressure Welding Relay Connector NDB 2018 (10 pieces) NDB-2018 1PK

Catalog number: NDB-2018 Features: ●No need to strip the wire coating. ●Easy connection with pliers. Applications: ●For connecting and relaying wires inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5-0.75 ●Wire clamping range AWG: 20-18 ●Color: Black ●Total length (mm): 25.2 ●Rated voltage (V): 300 ●Rated current: 6A (AWG20)/8A (AWG18) ●Width (mm): 6.7 (when mated) ●Height (mm): 7.8 (when mated) ●Length (mm): 43.6 (when mated) ●Number of wires inserted (pieces): 1 ●Operating temperature range (℃): -20-120 ●Wire coating outer diameter (maximum): φ2.8mm Material/Finish: ●Polycarbonate Caution: ●Cannot be removed.
