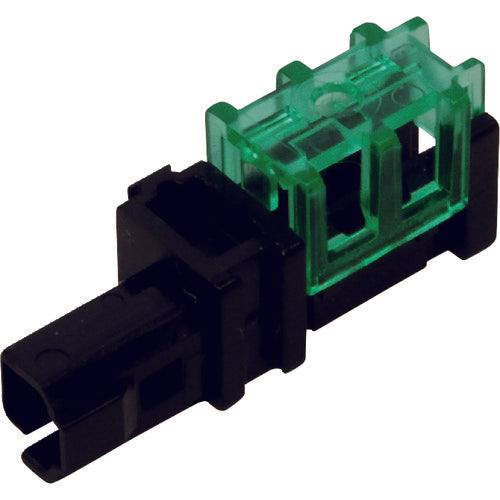

Nichifu Pressure Welding Relay Connector NDC 2018A (20 pieces) NDC-2018A 1PK

Catalog number: NDC-2018A Features: ●No need to strip the wire coating. ●Easy connection with pliers. ●Male and female connection possible with a single connector. ●Connectors can be linked together to be used as a multi-pole connector. Applications: ●For connecting and relaying wires inside equipment. Specifications: ● Wire clamping range Stranded wire ([MM2]): 0.5 to 0.75 ● Wire clamping range AWG: 20-18 ● Color: Black ● Total length (mm): 26 ● Rated voltage (V): 300 ● Rated current: 6A (AWG20) / 8A (AWG18) ● Width (mm): 6.7 (when mated) ● Height (mm): 7.8 (when mated) ● Length (mm): 25.2 (when mated) ● Number of inserted wires (pieces): 1 ● Operating temperature range (℃): -20 to 120 ● Wire coating outer diameter (maximum): φ2.8mm Material / Finish: ● Polycarbonate
