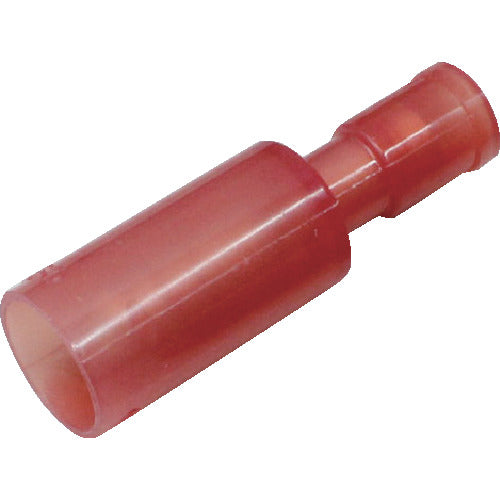

Nichifu Plug-in Pin Terminal Pack PC Type (100 Pieces) Red Transparent PC 4009-M-RCL 1 Bag

Catalog number: PC 4009-M-RCL Features: ●The pin terminal is male type. Applications: ●The plug-in pin terminal has a male side and a female side, and is used to connect wires by inserting them together. Specifications: ●Wire clamping range Stranded wire (mm2): 0.75-1.25 ●Wire clamping range AWG: 18-16 ●Color: Red transparent ●Shape: Male ●Outer diameter (mm): 7.4 ●Total length (mm): 27.7 ●Inner dimension (mm): 1.8 ●F (mm): 16.5 ●Rated voltage (V): 300 ●Compatible tools: Crimp terminals with insulating coating, tools for sleeves ●Outer dimensions (mm): 7.4 Material/Finish: ●Terminal: Brass (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulation: Nylon Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the appropriate crimping tool specified by our company.
