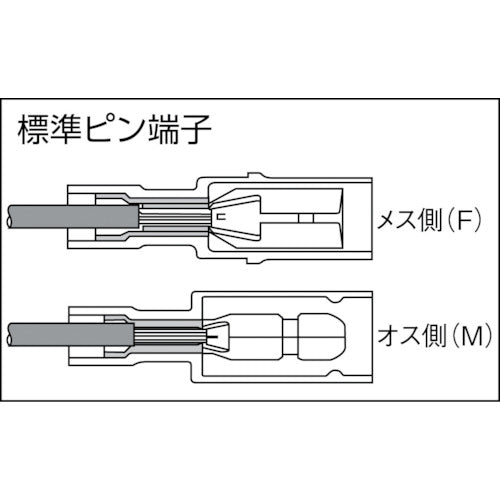

Catalog number: PC 4020-M-BLU Features: ●The pin terminal is a male type. Applications: ●The plug-in pin terminal has a male side and a female side, and is used to connect electric wires by inserting them together. Specifications: ●Wire clamping range Stranded wire (mm2): 2.00 ●Wire clamping range AWG: 14 ●Color: Blue ●Shape: Male ●Outer diameter (mm): 7.4 ●Total length (mm): 27.7 ●Inner dimension (mm): 2.4 ●F (mm): 16.5 ●Rated voltage (V): 300 ●Compatible tools: Insulated crimp terminals, tools for sleeves Material/Finish: ●Terminal: Brass (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulator: Nylon Caution: ●For copper wire only. ●Use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
